Cast iron pipe

Material of cast iron pipe:  Nodular cast iron and grey cast iron

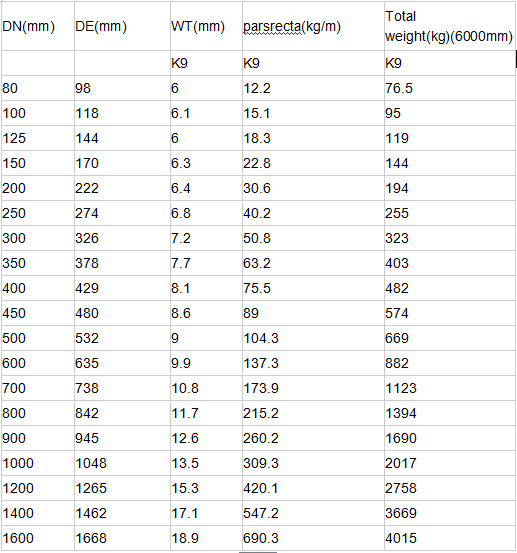

Size of cast iron pipe:  (98MM-2082MM)OD×(6MM-30MM)WT×(4000-15000MM)LONG

Executive standard of cast iron pipe:  GB/13924

Tolerance zone of cast iron pipe:   Within the scope of the standard

Usage temperature:   less than or equal to 250℃

Applicable medium:  water,,oil,steam,coal gas.

Our company has passed the standard requirement of ISO9001:2008 in June,2010.In July,2010,approved by AQSIQ of the People's Republic of China,we obtained special equipment manufacturing certificate,No. TS2710的D03-2015 of the people's Republic of China. To insure the quality of our products, we have equipped perfect inspection facilities,such as imported OES(Optical Emission Spectrometer),UT(Ultrasonic Testing)and ET(Eddy Current Flaw Testing),etc.We also own import-export operations right.Our products has been exported to Europe,Japan,Middle East,Southeast Asia and so forth.Stainless steel pipe of brand ZKV enjoys great reputation among customers at home and abroad.Our company can not only produce various standards of steel pipes,but also can have them nonstandard as customers’ requirements.As to our certificates,please refer to the certificate page on our website.


Cast iron short pipe



Cast iron pipe


Product Description:

Trade assurance ductile iron pipe rates 1200mm ductile iron pipe cast iron water pipe

1) Pipes confirm to ISO2531,K9 class,T type joint,6m long,with inside cements lining conform to

ISO4179, outside Zinc spraying(130g/m2) and bitumen coating(70μm) conform to ISO8179.

2) Pipe ends: Spigot and socket ends, with 100% SBR rubber gaskets accoding to ISO4633.

3) Effective length: 6M for 40' container, 5.7M for 20' container.

4) we can do third party inspection according to customer's request.

5) Our documents can be legalized by the embassy.


Chemical Analysis:

Trade assurance ductile iron pipe rates 1200mm ductile iron pipe cast iron water pipe


C(%)

Si(%)

Mn(%)

P(%)

S(%)

Mg(%)

3.71

2.2

0.095

0.037

0.014

0.044


Tensile Strength

>=420N/MM2

Bending Strength

>=590N/MM2

Elongation

DN80-1000>=10%

DN1000-1400>=7%

Hardness

>=170HB
